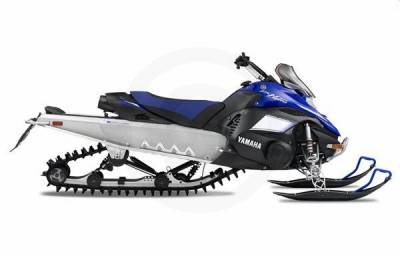

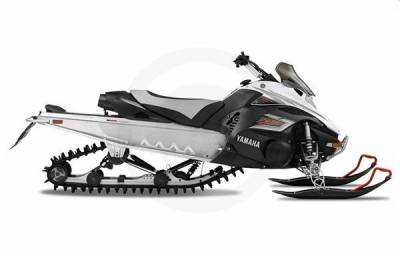

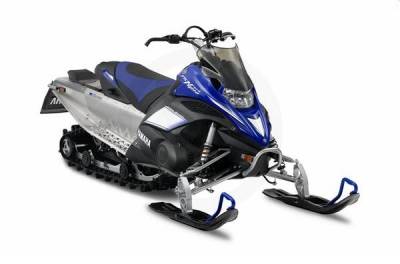

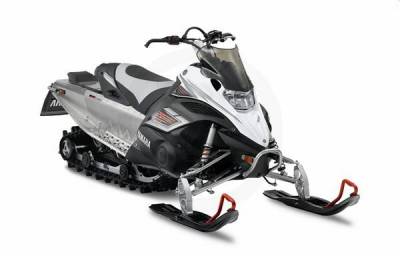

2009 Yamaha FX Nytro MTX SOLD

  • Year : 2009
  • Location : Maumee, OH, US
  • Price : $ 11,099

Product Description

Light, Agile And Widked-Potent.

130 HP Class.


Genesis® 130FI 4-stroke engine - The fast-revving, high torque 130hp-class Genesis 130FI boasts a sizeable performance gain over the Genesis 120. That gain can be credited to a slightly larger displacement, 1050cc 3-cylinder design and the introduction of Yamahas advanced fuel injection technology. The Genesis 130FI uses lightweight crank technology and the fuel injection system to deliver razor-sharp throttle response. It also features the Engine Braking Reduction System (EBRS) to give riders some coast feeling when the throttle is released.

Advanced fuel injection - The Genesis 130FI uses Yamahas advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engines spot-on performance and throttle response as a result of the advanced electronic fuel injection system.

Engine braking reduction system - The Genesis 130FI features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders a coast feeling.

Lightweight rear-exiting exhaust - The patented rear exit design serves many performance-enhancing functions on the FX Nytro MTX. First, it maximizes horsepower by using a straight exhaust pipe design. Second, it reduces the amount of under-hood heat produced. Third, the rear-exiting design distributes weight to contribute to the excellent balance of the sled.

Forced air radiator ducting - The FX Nytro MTXs airflow design pulls fresh air in from around the headlight and forces it through the radiator fins for high cooling capacity, resulting in consistent engine performance even in low-snow conditions.

15x153x2.25-inch Camoplast® Maverick™ track/extrovert drive sprockets - Yamaha and Camoplast® collaborated in the design of the Maverick™ track. The 15x153x2.25-inch track features a 3-inch pitch to allow more snow to pack in between the lugs for a firmer grip on the snow. Also, the lugs are extremely varied in design and profile for even more traction in multiple snow conditions. Churning the track is a pair of factory-engineered extrovert drive sprockets. The engineering team purpose-built these sprockets to work with the Maverick™ track and reduce vibration.


FX™ chassis with sport rider-forward position - The compact design puts the engine down low and back in the chassis, leaving the top of the cab open for airflow. This gives the FX Nytro MTX a more centralized mass. The FX Nytro MTXs sport rider-forward ergonomic design puts the rider in an aggressive, yet comfortable, forward posture.

Over-the-engine steering - The snocross-proven over-the-engine steering configuration gives the rider excellent posture on the sled. It also allows the engine to be tucked deep into the chassis for optimum balance and mass centralization.

Tall, wide, hooked mountain handlebars - To match the tall and forward position, a single-piece, dual-hooked handlebar is standard fare on the FX Nytro MTX. The hooks have the same grip material as the main bar section, for consistent control, regardless of hand position on the grip. Mountain riders will appreciate the center grab strap when its time for sidehilling.

Tall shock tower front suspension - The tall shock tower design on the FX Nytro MTXs double wishbone front suspension allows the sled to have excellent ground clearance and long shock travel without compromising the sleds flat cornering stability. The FX Nytro MTX maintains its original front suspension geometry.

Composite upper skeleton - The headlight assembly and upper portion of the FX Nytro MTX is supported by a super-lightweight composite framework. By using a rugged, high tech composite material as the structure for the top portion of the sled, Yamaha engineers were able to keep the mass centered low and deep in the chassis, which aids handling.

Beveled deep tunnel design - The deep tunnel on the FX Nytro MTX locates riders feet, and thus their weight when standing, very low on the sled. This significantly aids in the sleds handling. The bevel at the top allows the sled to use a traditional 15-inch-wide track, for excellent traction, in conjunction with a plush narrow seat, for rider comfort.


ProMountain™ CK 153 rear suspension - The lightweight ProMountain CK 153 rear suspension is a conventional torsion spring design. It was engineered to help the sled get up on plane in the fresh snow. It does this through weight transfer and shallow track approach angle. The dual-angle rails also give the FX Nytro MTX excellent trail manners, while maintaining its deep snow flotation. The ProMountain 153 delivers 14 inches of vertical travel.

Aluminum HPG shocks - The FX Nytro MTX uses lightweight aluminum HPG shocks on the ProMountain CK 153 rear suspension. The front arm uses a standard shock, while the rear arm has a compression adjustable clicker shock to allow owners a range of suspension adjustability.

Wide runningboards with traction - The FX Nytro MTX is all about fun and handling. As a result, the runningboards are nice and wide and loaded with traction. Riders will be able to put their feet anywhere on the runningboards and have confidence in their traction. This allows the rider to move around and really enjoy the full fun of a lightweight sled.

Sculpted narrow seat - The FX Nytro MTX has a narrow seat for comfort. In addition to putting the rider in a tall, forward, attack posture, the seats height makes it plush and comfortable for a full day of riding. The narrow seat sits atop the beveled tunnel, which allows the track to be a traditional 15 inches wide, to maximize traction.

Digital gauge - The digital gauge displays key information at a glance. Vehicle speed is displayed on a large LCD readout. In addition, the rider can select tachometer, odometer or tripmeter data to appear on secondary readout. The gauge also displays system warning lights, fuel level, and warmer intensity.

Quick-release, single-piece hood/console shroud - The FX Nytro MTX has a single-piece hood and console shroud. The design allows owners to open and close the top portion of the sled easily with Dzus® quick-connect fasteners.
COLORYamaha Blue/White
ENGINEType / Displacement / cc: 4-Stroke, 1049cc
Cylinders: Three
Horsepower Class: 130 HP
Cooling: Liquid
Bore & Stroke / mm: 82.0 X 66.2
Intake Design: 2 Valves
Carburetion: 41mm Mikuni® fuel injection
Ignition: Digital T.C.I. with throttle position sensor
Exhaust: Rear exhaust
Clutch / Transmission: YVXC, variable ratio
Disc. Brake Type: 4-piston hydraulic w/ lightweight ventilated disc
CHASSISFront Suspension: Independent, double wishbone
Front Shocks: 40mm SOQI aluminum HPG
Front Travel / in.: 7.3 in
Ski Type: Wide saddleless plastic mountain ski
Carbide Ski Runners: Standard
Stabilizer Bar: Standard
Rear Suspension: ProMountain™ CK 153
Rear Shocks: C40 R12.5 SOQI aluminum HPG / C40 R12.5 SOQI aluminum w/ piggyback compression clicker
Rear Travel / in.: 14 in
DIMENSIONSOverall Length / in.: 127.5 in
Overall Width / in.: 45.6 in
Overall Height / in.: 47.0 in
Track/Width x Length x Height / in.: 15 in X 153 in X 2.25 in, Camoplast Maverick™
Ski Stance (ctr. to ctr.) in.: 38.6 in
Estimated Dry Weight: 553 lb
Fuel Capacity / Gal.: 7.4 gal
Fuel Type: Regular Unleaded
Oil Capacity / Qts.: 3, Dry Sump
Engine Oil Type: Yamalube 4, 0w-30, Cold Weather Formula
ADDITIONAL FEATURESElectric Start: Standard
Reverse: Standard
Hand & Thumb Warmers: To-the-end, 9-position adjustable
Windshield Height: Low
Seating Capacity: One
Tow Hitch: Optional
Headlight Watts, Type: 60/55W Halogen x 2
Oil & Temp Light: Standard
Fuel Gauge Type: Electric (LCD), Low Fuel Warning Light
Speedometer: Standard (LCD Digital)
Odometer: Standard (LCD Display)
Tripmeter: Standard, Dual (Large LCD Display)
Tachometer: Standard, Backlit (LCD)
DC Outlet: Standard (automotive)
Warranty: 1 Year (Limited Factory Warranty)
PERFORMANCEGenesis® 130FI 4-stroke engine
Advanced fuel injection
Engine braking reduction system
Lightweight rear-exiting exhaust
Forced air radiator ducting
15x153x2.25-inch Camoplast® Maverick™ track/extrovert drive sprockets
HANDLINGFX™ chassis with sport rider-forward position
Over-the-engine steering
Tall, wide, hooked mountain handlebars
Tall shock tower front suspension
Composite upper skeleton
Beveled deep tunnel design
COMFORTProMountain™ CK 153 rear suspension
Aluminum HPG shocks
Wide runningboards with traction
Sculpted narrow seat
Digital gauge
Quick-release, single-piece hood/console shroud
